Create and track plots from experiments

Create and track plots from machine learning experiments.

Using the methods in wandb.plot, you can track charts with wandb.Run.log(), including charts that change over time during training. To learn more about our custom charting framework, check out the custom charts walkthrough.

Basic charts

These simple charts make it easy to construct basic visualizations of metrics and results.

Line

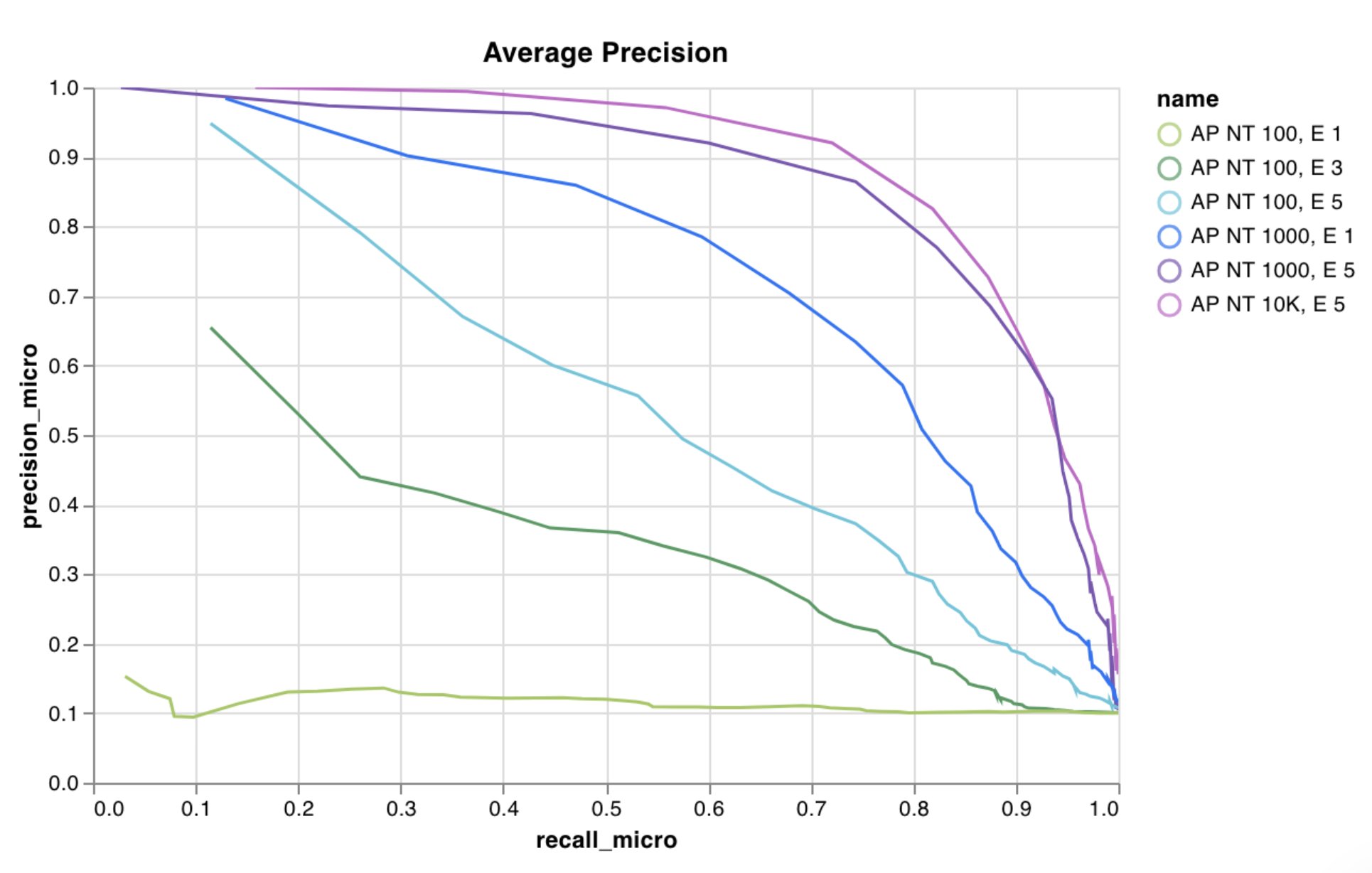

Log a custom line plot—a list of connected and ordered points on arbitrary axes.

import wandb

with wandb.init() as run:
    data = [[x, y] for (x, y) in zip(x_values, y_values)]
    table = wandb.Table(data=data, columns=["x", "y"])
    run.log(
        {
            "my_custom_plot_id": wandb.plot.line(
                table, "x", "y", title="Custom Y vs X Line Plot"
            )
        }
    )

You can use this to log curves on any two dimensions. If you’re plotting two lists of values against each other, the number of values in the lists must match exactly. For example, each point must have an x and a y.

See in the app

Run the code

Scatter

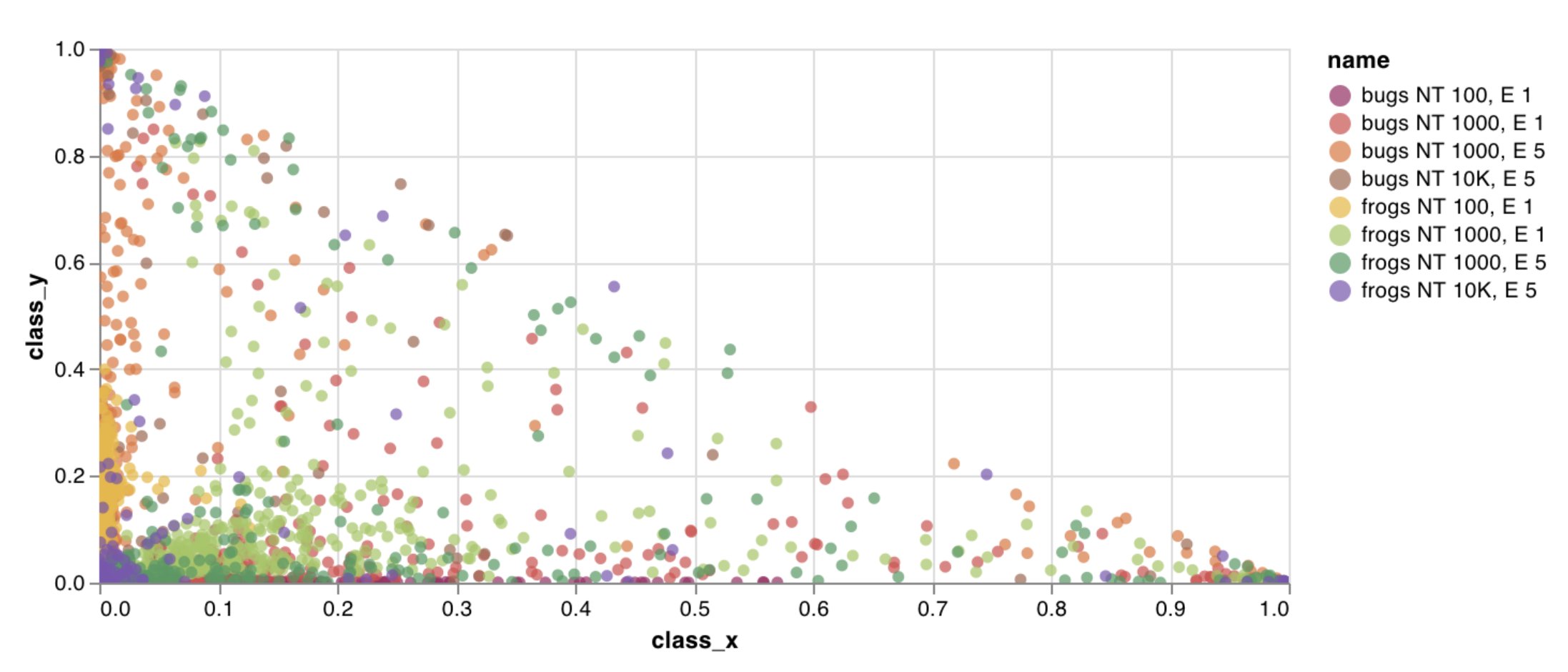

Log a custom scatter plot—a list of points (x, y) on a pair of arbitrary axes x and y.

import wandb

with wandb.init() as run:
    data = [[x, y] for (x, y) in zip(class_x_scores, class_y_scores)]
    table = wandb.Table(data=data, columns=["class_x", "class_y"])
    run.log({"my_custom_id": wandb.plot.scatter(table, "class_x", "class_y")})

You can use this to log scatter points on any two dimensions. If you’re plotting two lists of values against each other, the number of values in the lists must match exactly. For example, each point must have an x and a y.

See in the app

Run the code

Bar

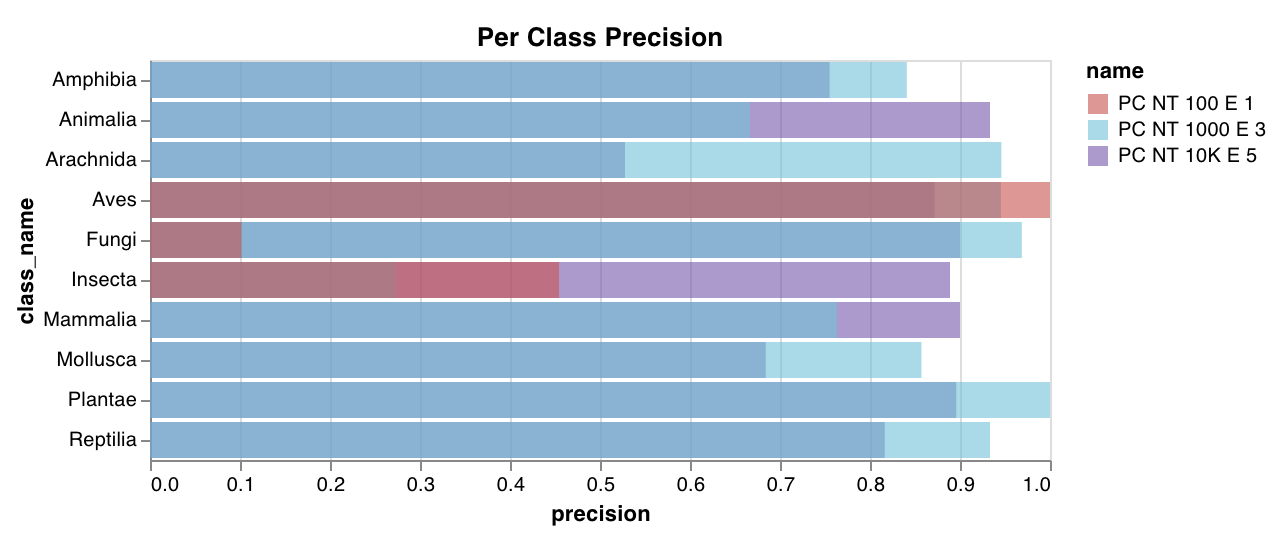

Log a custom bar chart—a list of labeled values as bars—natively in a few lines:

import wandb

with wandb.init() as run:
    data = [[label, val] for (label, val) in zip(labels, values)]
    table = wandb.Table(data=data, columns=["label", "value"])
    run.log(
        {
        "my_bar_chart_id": wandb.plot.bar(
            table, "label", "value", title="Custom Bar Chart"
        )
    }
)

You can use this to log arbitrary bar charts. The number of labels and values in the lists must match exactly. Each data point must have both.

See in the app

Run the code

Histogram

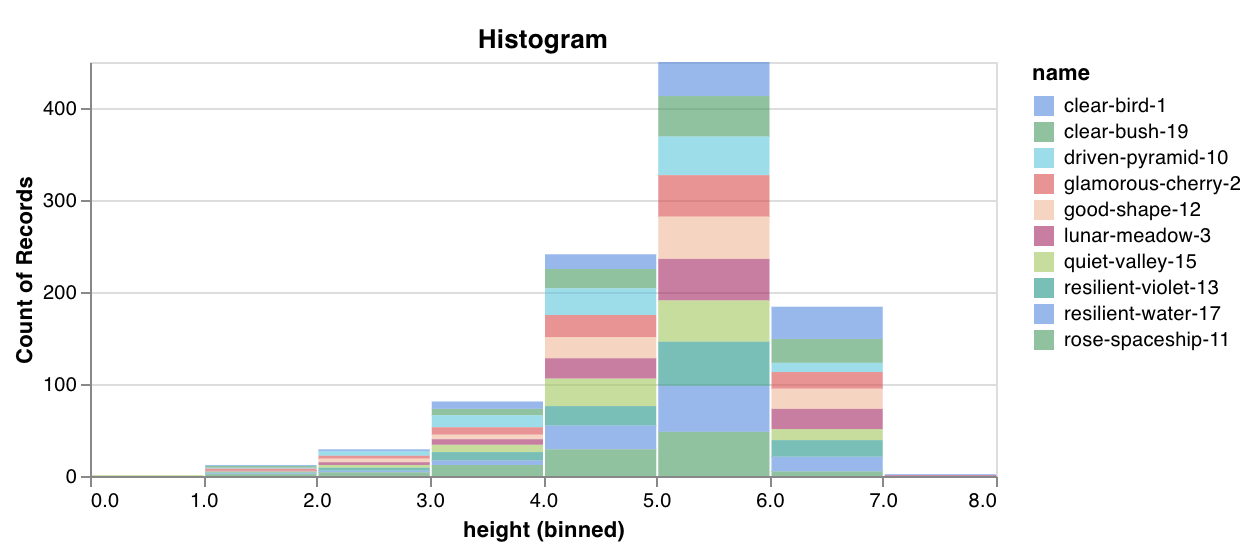

Log a custom histogram—sort a list of values into bins by count/frequency of occurrence—natively in a few lines. Let’s say I have a list of prediction confidence scores (scores) and want to visualize their distribution:

import wandb

with wandb.init() as run:
    data = [[s] for s in scores]
    table = wandb.Table(data=data, columns=["scores"])
    run.log({"my_histogram": wandb.plot.histogram(table, "scores", title="Histogram")})

You can use this to log arbitrary histograms. Note that data is a list of lists, intended to support a 2D array of rows and columns.

See in the app

Run the code

Multi-line

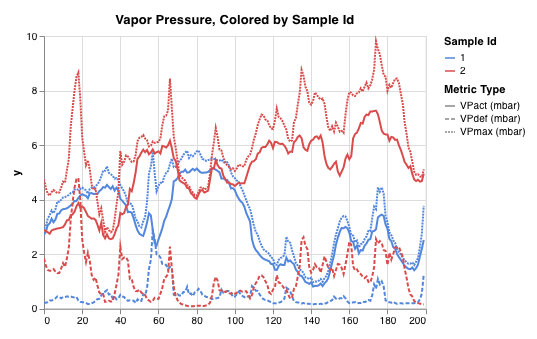

Plot multiple lines, or multiple different lists of x-y coordinate pairs, on one shared set of x-y axes:

import wandb
with wandb.init() as run:
    run.log(
        {
            "my_custom_id": wandb.plot.line_series(
                xs=[0, 1, 2, 3, 4],
                ys=[[10, 20, 30, 40, 50], [0.5, 11, 72, 3, 41]],
            keys=["metric Y", "metric Z"],
            title="Two Random Metrics",
            xname="x units",
        )
    }
)

Note that the number of x and y points must match exactly. You can supply one list of x values to match multiple lists of y values, or a separate list of x values for each list of y values.

See in the app

Model evaluation charts

These preset charts have built-in wandb.plot() methods that make it quick and easy to log charts directly from your script and see the exact information you’re looking for in the UI.

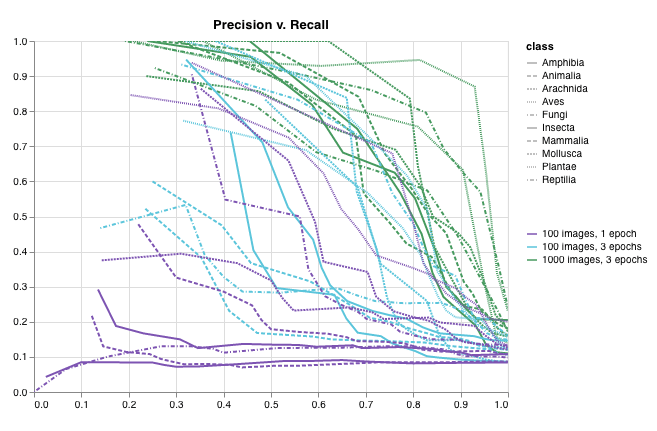

Precision-recall curves

Create a Precision-Recall curve in one line:

import wandb
with wandb.init() as run:
    # ground_truth is a list of true labels, predictions is a list of predicted scores
    # e.g. ground_truth = [0, 1, 1, 0], predictions = [0.1, 0.4, 0.35, 0.8]
    ground_truth = [0, 1, 1, 0]
    predictions = [0.1, 0.4, 0.35, 0.8]
    run.log({"pr": wandb.plot.pr_curve(ground_truth, predictions)})

You can log this whenever your code has access to:

• a model’s predicted scores (predictions) on a set of examples
• the corresponding ground truth labels (ground_truth) for those examples
• (optionally) a list of the labels/class names (labels=["cat", "dog", "bird"...] if label index 0 means cat, 1 = dog, 2 = bird, etc.)
• (optionally) a subset (still in list format) of the labels to visualize in the plot

See in the app

Run the code

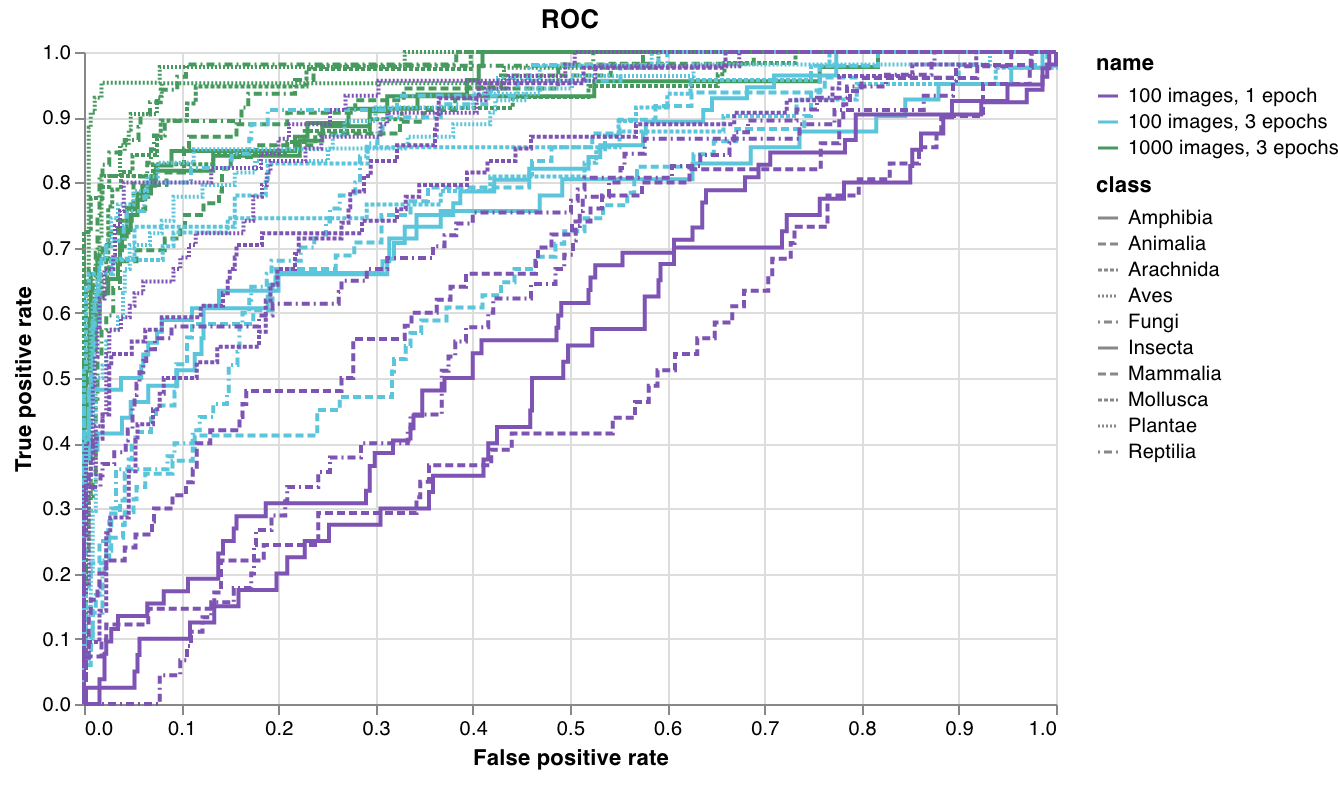

ROC curves

Create an ROC curve in one line:

import wandb

with wandb.init() as run:
    # ground_truth is a list of true labels, predictions is a list of predicted scores
    # e.g. ground_truth = [0, 1, 1, 0], predictions = [0.1, 0.4, 0.35, 0.8]
    ground_truth = [0, 1, 1, 0]
    predictions = [0.1, 0.4, 0.35, 0.8]
    run.log({"roc": wandb.plot.roc_curve(ground_truth, predictions)})

You can log this whenever your code has access to:

• a model’s predicted scores (predictions) on a set of examples
• the corresponding ground truth labels (ground_truth) for those examples
• (optionally) a list of the labels/ class names (labels=["cat", "dog", "bird"...] if label index 0 means cat, 1 = dog, 2 = bird, etc.)
• (optionally) a subset (still in list format) of these labels to visualize on the plot

See in the app

Run the code

Confusion matrix

Create a multi-class confusion matrix in one line:

import wandb

cm = wandb.plot.confusion_matrix(
    y_true=ground_truth, preds=predictions, class_names=class_names
)

with wandb.init() as run:
    run.log({"conf_mat": cm})

You can log this wherever your code has access to:

• a model’s predicted labels on a set of examples (preds) or the normalized probability scores (probs). The probabilities must have the shape (number of examples, number of classes). You can supply either probabilities or predictions but not both.
• the corresponding ground truth labels for those examples (y_true)
• a full list of the labels/class names as strings of class_names. Examples: class_names=["cat", "dog", "bird"] if index 0 is cat, 1 is dog, 2 is bird.

​See in the app​

​Run the code

Interactive custom charts

For full customization, tweak a built-in Custom Chart preset or create a new preset, then save the chart. Use the chart ID to log data to that custom preset directly from your script.

import wandb
# Create a table with the columns to plot
table = wandb.Table(data=data, columns=["step", "height"])

# Map from the table's columns to the chart's fields
fields = {"x": "step", "value": "height"}

# Use the table to populate the new custom chart preset
# To use your own saved chart preset, change the vega_spec_name
# To edit the title, change the string_fields
my_custom_chart = wandb.plot_table(
    vega_spec_name="carey/new_chart",
    data_table=table,
    fields=fields,
    string_fields={"title": "Height Histogram"},
)

with wandb.init() as run:
    # Log the custom chart
    run.log({"my_custom_chart": my_custom_chart})

Run the code

Matplotlib and Plotly plots

Instead of using W&B Custom Charts with wandb.plot(), you can log charts generated with matplotlib and Plotly.

import wandb
import matplotlib.pyplot as plt

with wandb.init() as run:
    # Create a simple matplotlib plot
    plt.figure()
    plt.plot([1, 2, 3, 4])
    plt.ylabel("some interesting numbers")

    # Log the plot to W&B
    run.log({"chart": plt})

Just pass a matplotlib plot or figure object to wandb.Run.log(). By default we’ll convert the plot into a Plotly plot. If you’d rather log the plot as an image, you can pass the plot into wandb.Image. We also accept Plotly charts directly.

If you’re getting an error “You attempted to log an empty plot” then you can store the figure separately from the plot with fig = plt.figure() and then log fig in your call to wandb.Run.log().

Log custom HTML to W&B Tables

W&B supports logging interactive charts from Plotly and Bokeh as HTML and adding them to Tables.

Log Plotly figures to Tables as HTML

You can log interactive Plotly charts to wandb Tables by converting them to HTML.

import wandb
import plotly.express as px

# Initialize a new run
with wandb.init(project="log-plotly-fig-tables", name="plotly_html") as run:

    # Create a table
    table = wandb.Table(columns=["plotly_figure"])

    # Create path for Plotly figure
    path_to_plotly_html = "./plotly_figure.html"

    # Example Plotly figure
    fig = px.scatter(x=[0, 1, 2, 3, 4], y=[0, 1, 4, 9, 16])

    # Write Plotly figure to HTML
    # Set auto_play to False prevents animated Plotly charts
    # from playing in the table automatically
    fig.write_html(path_to_plotly_html, auto_play=False)

    # Add Plotly figure as HTML file into Table
    table.add_data(wandb.Html(path_to_plotly_html))

    # Log Table
    run.log({"test_table": table})

Log Bokeh figures to Tables as HTML

You can log interactive Bokeh charts to wandb Tables by converting them to HTML.

from scipy.signal import spectrogram
import holoviews as hv
import panel as pn
from scipy.io import wavfile
import numpy as np
from bokeh.resources import INLINE

hv.extension("bokeh", logo=False)
import wandb


def save_audio_with_bokeh_plot_to_html(audio_path, html_file_name):
    sr, wav_data = wavfile.read(audio_path)
    duration = len(wav_data) / sr
    f, t, sxx = spectrogram(wav_data, sr)
    spec_gram = hv.Image((t, f, np.log10(sxx)), ["Time (s)", "Frequency (hz)"]).opts(
        width=500, height=150, labelled=[]
    )
    audio = pn.pane.Audio(wav_data, sample_rate=sr, name="Audio", throttle=500)
    slider = pn.widgets.FloatSlider(end=duration, visible=False)
    line = hv.VLine(0).opts(color="white")
    slider.jslink(audio, value="time", bidirectional=True)
    slider.jslink(line, value="glyph.location")
    combined = pn.Row(audio, spec_gram * line, slider).save(html_file_name)


html_file_name = "audio_with_plot.html"
audio_path = "hello.wav"
save_audio_with_bokeh_plot_to_html(audio_path, html_file_name)

wandb_html = wandb.Html(html_file_name)

with wandb.init(project="audio_test") as run:
    my_table = wandb.Table(columns=["audio_with_plot"], data=[[wandb_html]])
    run.log({"audio_table": my_table})
